Caractéristiques Techniques

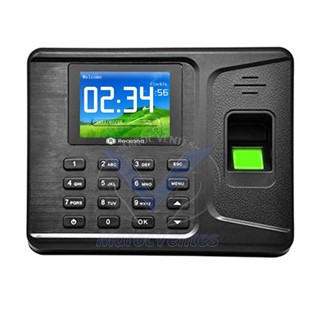

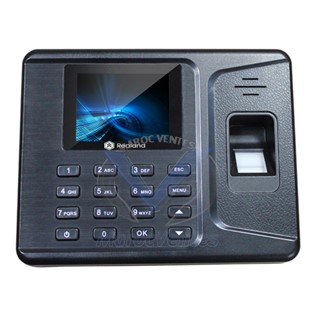

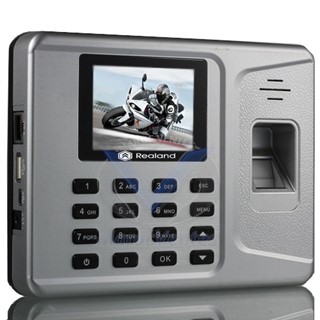

A-F261 is new model, color screen fingerprint time attendance terminal. It’s ultrathin and with In-Mold Decoration technology, fashionable and elegant.

Agents/distributors could customize different front case according to markets requirements, so as to differentiate different markets and realize the maximum market share.

POINTEUSE BIOMÉTRIQUE Empreintes RFID+ PASSWORD:

• LCD:2.8 inch TFT
• Identification: empreintes digitales , carte RFID;password
• Empreintes digitales:1000+Log Capacity:100,000 events
• Communication:USB,TCP/IP CPU:32bits
• USB Flash Drive / Téléchargement : Disponible
• Messages vocaux : Disponible ; Alimentation : DC 5V/1A

Specifications
CPU	ARM926EJ-S processor,   32bit RISC Kernel, working frequency: 200MHz
Display	2.8 inch TFT color screen
Fingerprint Sensor	500DPI (optical   sensor)
Max User	1,000
Fingerprint Capacity	1,000
Card/ PIN Capacity	1,000
Transaction Capacity	100,000
Language	Chinese, English, Spanish, Korean…
Communication	TCP/IP; USB Flash   Drive; USB Cable
Proximity Card	Standard for RFID Card(125KHz); optional for   MIFARE Card (13.56MHz)
Bell	Built-in Timing Bell (Scheduled-bell);  external belling
Optional	Backup   Battery
Power Supply	DC 5V/1A
Operation Environment	Operating Temp: 0 ℃   ~ 45℃, Humidity: 20% ~ 80%
Dimension	170(L)*133(W)*30(H)mm
